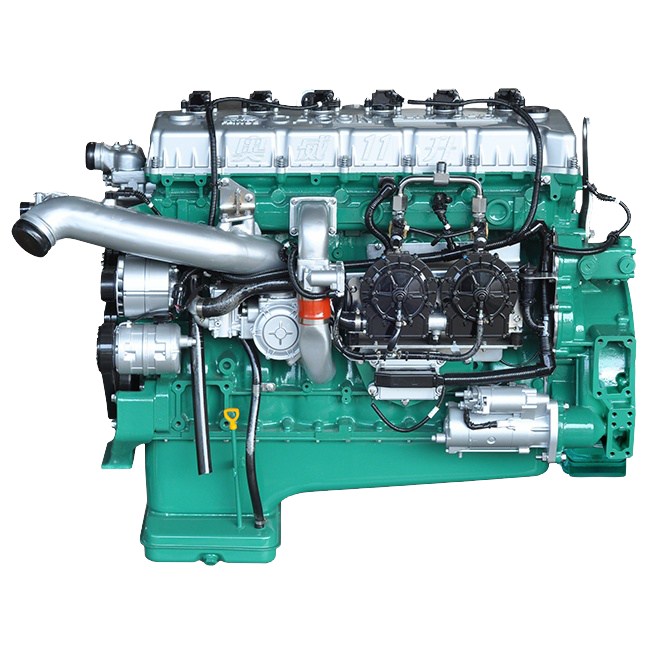

GAS ENGINE CA6SM series

GAS ENGINE CA6SM series

ModelCA6SM2-31E4NCA6SM2-33E4NCA6SM2-35E4NCA6SM2-37E4N
Type6 cylinders, in-line, director injection, turbocharged inter-cooling, electric-controlled system(closed loop control)
Bore×Stroke(mm)123×155
Valves/cylinder4
Displacement (L)11.04
Rated power(kW)231245261278
Net power(kW)228242258275
Rated speed (r/min)1900
Maximum torque (Nm)1450150015501650
Maximum torque speed (r/min)1100~15001100~1400
Min. gas consumption at full load (g/kW.h)195
Noise dB(A)≤96
Emission Compliant(TAS)EURO IV
Net Mass (kg)1050
Length×Width×Height(mm)1365×775×1180


ModelCA6SM2-31E5NCA6SM2-33E5NCA6SM2-35E5NCA6SM2-37E5N
Type6 cylinders, in-line, director injection, turbocharged inter-cooling, electric-controlled system(closed loop control)
Bore×Stroke(mm)123×155
Valves/cylinder4
Displacement (L)11.04
Rated power(kW)231246261278
Net power(kW)228243258275
Rated speed (r/min)1900
Maximum torque (Nm)1450150015501650/1300
Maximum torque speed (r/min)1100~15001100~1400
Min. gas consumption at full load (g/kW. h ) 195
Noise dB(A)≤96
Emission Compliant(TAS)EURO V
Net Mass (kg)1050
Length×Width×Height(mm)1365×775×1180
