Двигатель автомобиля ЕВРО IV

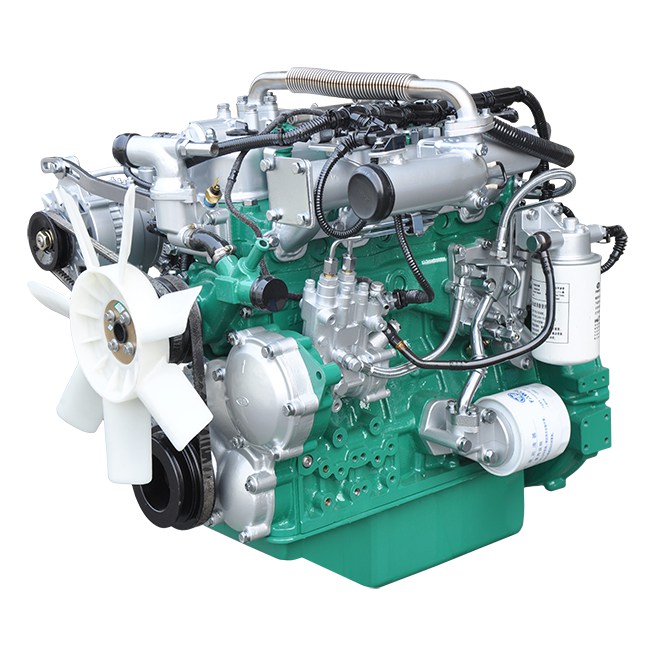

EURO IV Vehicle Engine 4DW series

Adopt electric-controlled high pressure common rail system, with higher oil injection pressure, greater atomization rate and more sufficient combustion;

Independent R & D on design of combustion chamber, intake and exhaust passage, three holes position on cylinder cover, and other technology, diesel engine inlet and exhaust system as well as combustion system are in the leading position at home;

Поделение мнений:
Model4DW93-78E44DW93-84E4
Type4-cylinder in-line, direct injection, turbocharged&intercooling, common rail
Bore×Stroke (mm)90×100
Valves/cylinder2
Displacement (L)2.54
Rated power/rated speed (kW/r/min)59/300064/3000
Net power/speed (kW/r/min)57/300062/3000
Maximum torque/speed (Nm/r/min)210/1900~2100220/1900~2100
Fuel consumption (g/kW·h)≤ 205
Smoke (m-1)≤ 0.48
Noise dB (A)≤ 95.5
Technical RouteEGR
Emission Compliant (TAS)EURO Ⅳ
Net Mass (kg)270
Length×Width×Height (mm)725×655×700

Fuel Efficient:

Adopt electric-controlled high pressure common rail system, with higher oil injection pressure, greater atomization rate and more sufficient combustion;

Independent R & D on design of combustion chamber, intake and exhaust passage, three holes position on cylinder cover, and other technology, diesel engine inlet and exhaust system as well as combustion system are in the leading position at home;

Optional integrated VCU device (polymorphic switch and etc.)that is researched and developed independently, and oil supply can be adjusted according to vehicle load.


Economic:

Do not need to use after treatment injection system, with low usage and maintenance cost.

Reliable:

Cylinder body, cylinder cover, crankshaft, connecting rod and other key parts are made CAD / CAE calculation, analysis, optimization, reliable and durable;

Use pressure difference sensor for real-time monitoring the operation of after treatment processor.


Comfortable:

Adopt Holland LMS vibration test system to make vibration testing optimization on the whole set, providing NVH support optimization for forming a complete set, with small vibration and low noise;

Optional cruse function, reduce driving strength;

Precise dynamic calibration makes the whole vehicle smooth in shifting;

Optional fuel level switch, automatically remind of drain through primary filter.


Safe:

Optional exhaust braking device and it is safer for going downward along a slope with heavy load;

It is optional to install OBD fault detection for real -time fault alert.


Optimization of whole set:

Adopt Austria AVL vehicle power transmission system simulation software to calculate, analyze & compare, test and evaluate for the whole vehicle matching, and the whole vehicle has powerful matching and better economical efficiency;

Do not need to use after treatment injection system system and the whole vehicle has convenient arrangement.


Personal Design:

Optional air conditioning, power steering, oil or gas brake;

Optional GPS system, with vehicle management, real-time control, vehicle-security, remote diagnosis and other functions;

Optional remote throttle, speed limits, deputy shutdown, CAN instrument and other functions.
