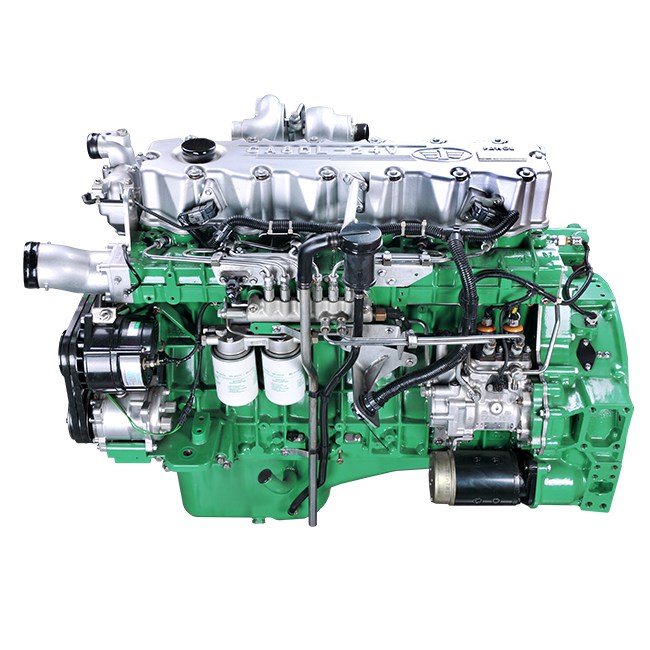

EURO III Vehicle Engine CA6DL1 series

Higher injection pressure, higher atomization rate, and more sufficient in combustion;

Reinforcement design on motion friction pair, structure components and other pieces, explosion pressure is high;

Initially use four-valve technology at home, with high inlet and exhaust efficiency;

EURO III CA6DL1 series

ModelCA6DL1-26E3CA6DL1-28E3CA6DL1-29E3CA6DL1-30E3CA6DL1-31E3CA6DL1-32E3
Type6-cylinder in-line, direct injection, turbocharged&intercooling, common rail
Bore×Stroke (mm)110 × 135
Valves/cylinder4
Displacement (L)7.7
Rated power (kW)195209216231231231
Net power/speed (kW/r/min)192206213220228228
Rated speed (r/min)2300
Maximum torque (Nm)105011001150115012001250
Maximum torque speed (r/min)1300~1700
Fuel consumption (g/kW·h)192
Noise dB (A)≤ 95.5
Technical Routecommon rail
Emission Compliant (TAS)EURO Ⅲ
Net Mass (kg)820
Length×Width×Height (mm)1285×820×1050


ModelCA6DL1-26E3UCA6DL1-28E3UCA6DL1-32E3UCA6DL1-26E3FCA6DL1-28E3FCA6DL1-31E3F
Type6-cylinder in-line, direct injection, turbocharged&intercooling, electronic unit pump6-cylinder in-line, direct injection, turbocharged&intercooling, inline pump+EGR
Bore×Stroke (mm)110 × 135
Valves/cylinder4
Displacement (L)7.7
Rated power (kW)195209231195209231
Net power (kW/)192206228192206228
Rated speed (r/min)2300
Maximum torque (Nm)100011001250100011001100
Maximum torque speed (r/min)1300~17001400
Fuel consumption (g/kW·h)194196
Noise dB (A)≤ 95.5
Technical Routeelectronic unit pumpinline pump +EGR
Emission Compliant (TAS)EURO Ⅲ
Net Mass (kg)820
Length×Width×Height (mm)1285×820×1050

Technical Characteristics

Fuel Efficient:

Higher injection pressure, higher atomization rate, and more sufficient in combustion;

Reinforcement design on motion friction pair, structure components and other pieces, explosion pressure is high;

Initially use four-valve technology at home, with high inlet and exhaust efficiency;

Optional integrate VCU device (polymorphic switch and etc.) that is researched and developed independently, and oil supply can be adjusted according to vehicle load;


Reliable:

Adopt electric-controlled common rail system that is widely used in the world, with mature technology;

Use inter Euro first-class brand products for the key spare parts such as piston, piston ring, crank, bearing bush and high strength bolt;

Products have passed through German TUV inter Euro certification;

Whole set B10 life span is 800, 000 km.


Comfortable:

Adopt Holland LMS vibration test system to make vibration testing optimization on the whole set, providing NVH support optimization for forming a complete set, with small  vibration and low noise;

Adopt helical gear transmission to improve transmission stability and reduce mechanical  noise;

Adopt ladder frame to increase structure rigidity of the whole set and reduce vibration;

Optional cruise function, reduce driving strength;

Precise dynamic calibration makes the whole vehicle smooth in shifting;

Optional fuel level switch, automatically remind of drain through primary filter.


Safe:

Optional engine braking technology, with great braking power, and it is safer for going downward along a slope with heavy load;

It is optional to install OBD fault detection for real-time fault alert.


Environment-friendly:

Pass through European Union Emission Certification;

Adopt patent technology of four-valve, double-intake passage, with slight smoke;

Emission margin is large, with emission upgrade potential.


Optimization of whole set:

Adopt Austria AVL vehicle power transmission system simulation software to calculate, analyze & compare, test and evaluate for the whole vehicle matching, and the whole vehicle has powerful matching and better economical efficiency;


Personal Design:

Optional GPS system, with vehicle management, real-time control, vehicle security, remote diagnosis and other functions;

Optional PTO device, to meet the need of special vehicle use;

Optional remote throttle, speed limits, deputy shutdown, CAN instrument and other functions.

Applicable Range

10~12 meters road, tourism and urban passenger bus;

Super heavy duty truck over 20 tons;

6~8m³ cement mixer;
