Автомобильный двигатель ЕВРО II

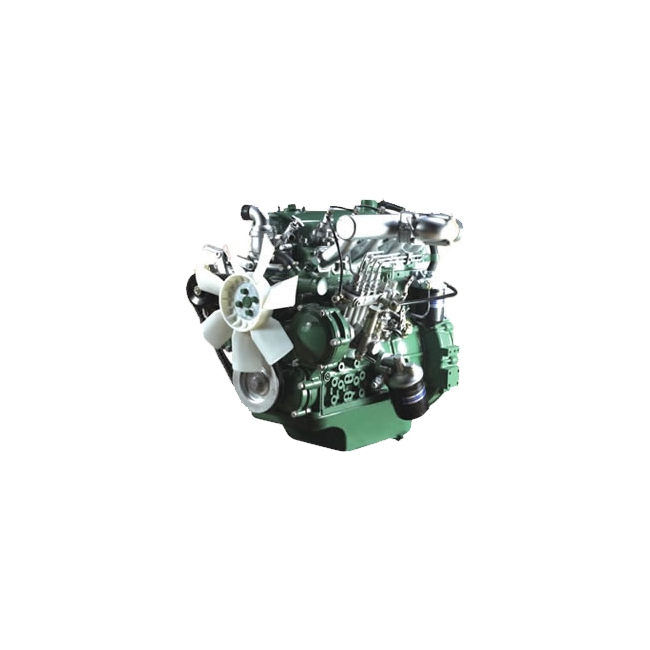

EURO II Vehicle Engine 4DW series

Поделение мнений:
Model4DW82-624DW92-73
Type4-cylinder in-line, direct injection, water cooling, turbocharged
Bore×Stroke (mm)85×9590×100
Valves/cylinder2
Displacement (L)2.162.54
Rated power4654
Rated speed (r/min)3200
Net power/speed (kW/r/min)4350
Maximum torque (Nm)158188
Maximum torque speed (r/min)2100
Fuel consumption (g/kW·h)225
Smoke (m-1)≤ 3.0
Noise dB (A)≤ 95.5
Emission Compliant (TAS)EURO Ⅱ
Net Mass (kg)270
Length×Width×Height (mm)750×600×735


Model4DW83-73 4DW93-80 4DW93-84
Type4-cylinder in-line, direct injection, water cooling, turbocharged inter-cooled
Bore×Stroke (mm)85×95 90×100
Valves/cylinder2
Displacement (L)2.162.542.54
Rated power5458.862
Rated speed (r/min)300028003000
Net power/speed (kW/r/min)525558
Maximum torque (Nm)200230230
Maximum torque speed (r/min)1800
Fuel consumption (g/kW·h)225
Smoke (m-1)≤ 3.0
Noise dB (A)≤ 95.5
Emission Compliant (TAS)EURO Ⅱ
Net Mass (kg)250
Length×Width×Height (mm)725×655×700
